How can I get a selective racking floor plan from Rocket Rack?
- Send us your warehouse layout or tell us about your warehouse dimension.
- Share with us about your pallet size(L*W*H) & weight with goods each pallet. So that we can better recommend you the rack size and loading capacity you need.
- Discuss with us about how many layers of beams you need for your racking.(That also depends on your forklift specification)
Eight Features of ROCKET RACK Selective Racking:
- Heavy Duty Selective Rackinghas a simple structure, are safe and reliable, can be adjusted and combined at will, and the order of items in and out of the warehouse is not restricted. They are widely used in storage modes with pallet storage and forklift access.
- Upright frames and Box beamsare connected by bolts with columns, cross braces, and diagonal braces, which is fixed with safety pins, and the structure is simple and reliable. Each layer can be freely adjusted up and down with a spacing of 75mm.
- Heavy Duty Selective Rackingcan determine the layer load requirements according to the size of the uprights and beams. They have the characteristics of large moment of inertia, strong layer load capacity, and strong impact resistance. The maximum layer load of each layer can be designed according to customer needs, generally 1000-4000kg per layer.
- The height of a single column of Heavy Duty Selective Rackingcan reach 12 meters. The plasticity of Heavy Duty Selective Racking is very large. On the basis of the pallet shelf, mold shelves, loft shelves, stereoscopic warehouse shelves, etc. can also be made into special oil barrel shelves, etc.
- Selective Rackingcan effectively increase the storage height of the warehouse and improve the space utilization rate of the warehouse. Suitable for the storage of various types of goods.
- To prevent forklift collisions, column foot guards and anti-collision bars can be added. In order to make layer loading safer, ancillary facilities such as layer boards, mesh , cross beams, etc. can also be installed on the beams.

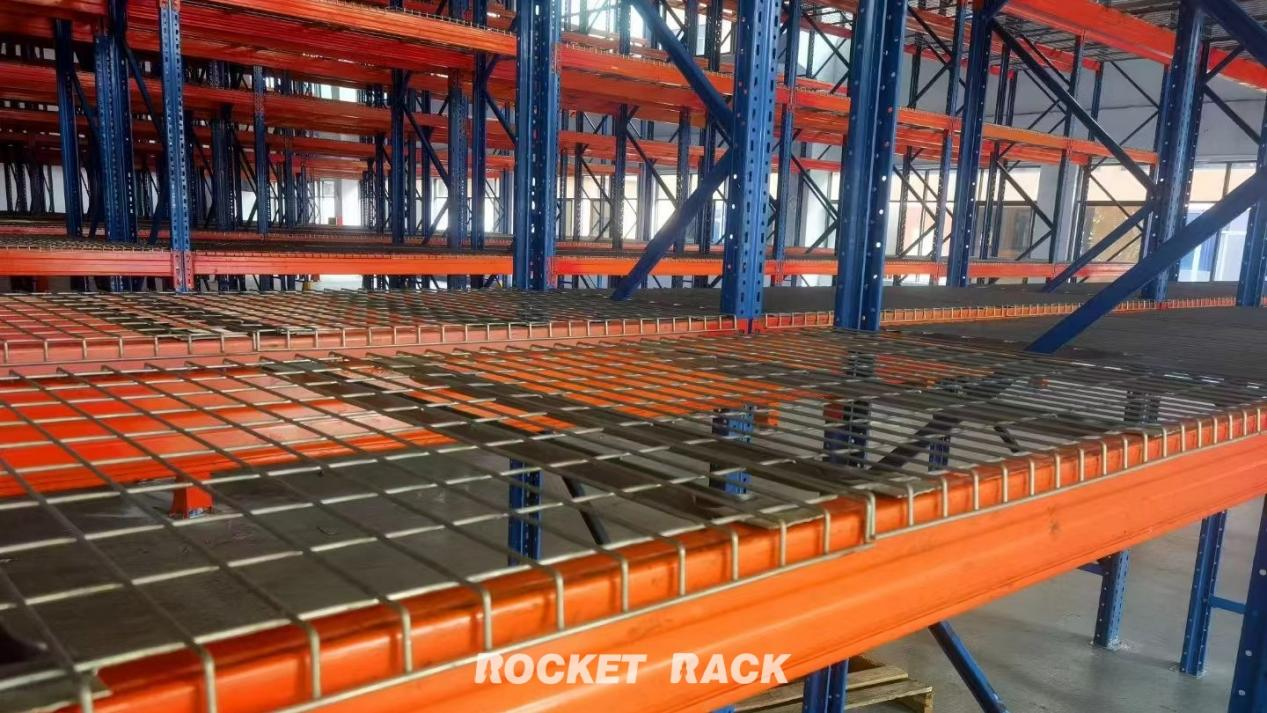

- Heavy Duty Selective Rackingcan also be equipped with layers, which can be wooden boards, layer mesh or iron layers. So that pallets of different sizes can be used.
What should I pay attention to when using the heavy duty selective racking?
- When using the heavy duty pallet racking, we should avoid being top-heavy: we need to follow the principle of putting lighter on top and heavier on the bottom.
- Prevent overloading: The stacking weight on each layer must not exceed the maximum each layer load capacity.
- Anti-collision: When using a forklift, it should be handled with care to prevent it from colliding with the racking.
- When there are goods on the upper layers, please be careful that employees are not allowed to directly enter the bottom of the racking.
- Prevent the using of non-standard pallets.
